Garden Room Proposed Drawings in Walton-on-Thames, Surrey

Walton-on-Thames, Surrey
June 2025

Garden Room Proposed Drawings in Walton-on-Thames, Surrey
Walton-on-Thames, Surrey

Results at a Glance

Issued a complete proposed drawing set in PDF and DWG formats.

Aligned the siting strategy to an OS-based boundary and accounted for roof overhang.

Turned around multiple revisions to reflect layout and door-position updates

Improved file accessibility by providing email-friendly PDFs alongside CAD outputs.

The Challenge

The client needed planning drawings for a new garden room at a residential property in Walton-on-Thames, including a clear set of elevations and a plan layout suitable for submission. The proposal also needed to reflect a constrained plot shape, with the building positioned as close to the rear and side boundaries as practical.

During the coordination, the client requested several design refinements—wall thickness assumptions, overall heights, door heights, and updates to openings (including enlarging and centralising bifold doors). There was also urgency around receiving the latest PDFs quickly, plus clarification required on why a side dimension was not taken to the full extent previously discussed.

The key technical constraint was demonstrating boundary-aware placement while keeping the proposal realistic, including allowances for elements such as roof overhang at the boundary line

Our Solution

We confirmed the dimensional basis and construction assumptions early (external dimensions, wall thickness, and stated internal/external heights), then prepared the proposed plan and elevations accordingly. We incorporated the client’s material notes where provided (e.g., cladding intent) and maintained consistent door height references across relevant elevations.

For the site positioning, we used an OS-based boundary reference and explained the practical implications of setting the building tight to the boundary—particularly where a visible gap is required to accommodate roof overhang. Where the requested siting created pressure on fit, we flagged that minor changes (dimension tweaks or slight rotation) might be required to keep the proposal within the boundary.

Revisions were issued in labelled sets (including “Rev001” and “Rev002”), and we supplied both DWG and PDF outputs to support the client’s workflow and improve download/access clarity.

What We Delivered

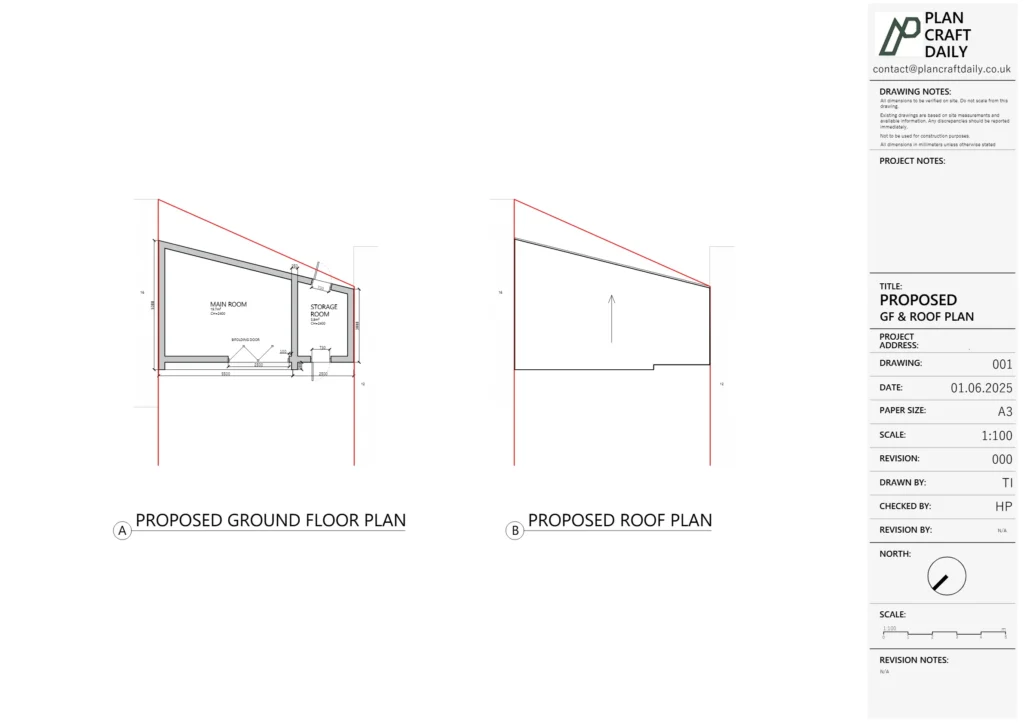

Proposed floor plan for the garden room layout.

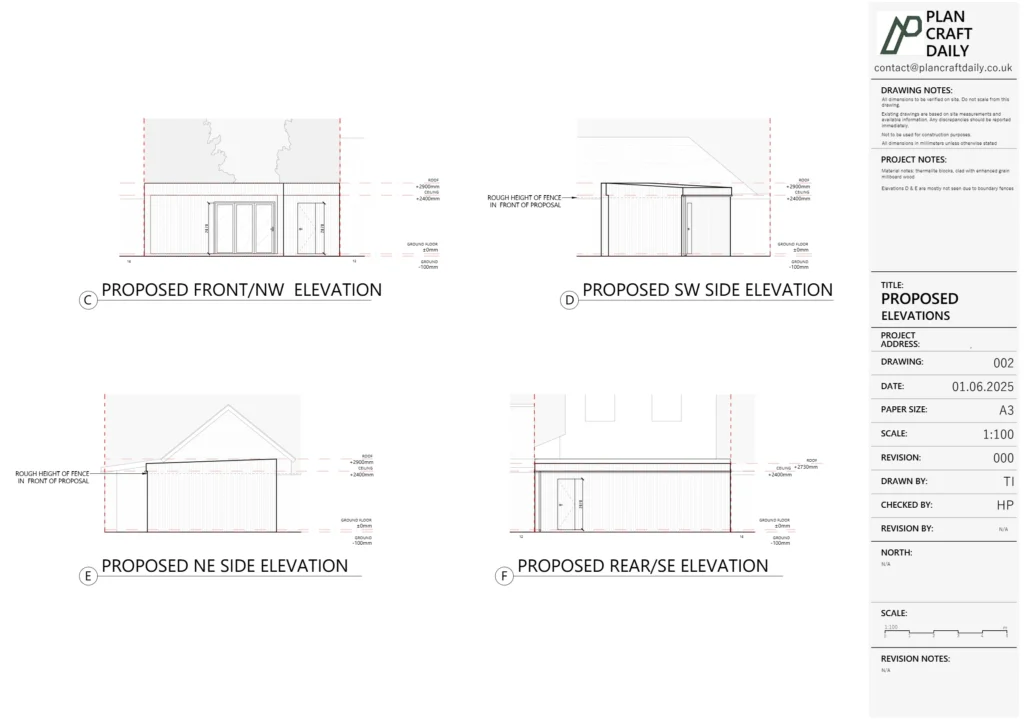

Proposed elevations reflecting stated heights and door positions.

Revision-labelled drawing set (including Rev001 and Rev002).

DWG CAD file package for the proposed drawings.

PDF drawing set suitable for sharing and submission.

Siting notes reflecting OS-based boundary alignment and roof overhang allowance.

Outputs Delivered

DWG

PDF

The Process

Agreeing Scope, Fee and Friday Access

Confirmed the scope for a garden room planning drawing set and gathered the essentials: whether dimensions were internal/external, wall thickness allowance, intended materials, key heights, and door requirements. Logged the client’s priority to show the proposal as close to the rear/side boundary as feasible.

On-Site Survey

Built the initial proposed plan and elevations using the client’s stated parameters, including wall thickness, internal/external heights, and door height notes. Prepared the drawing structure so updates to openings and room depths could be handled efficiently across the full set.

Cross-Checking Before Leaving

Developed the siting strategy using an OS-based boundary reference and explained practical constraints at the boundary, including allowance for roof overhang. Where tight placement created fit pressure, flagged that minor dimensional changes or slight rotation might be needed to remain within the boundary.

Turning Survey into Plans and Elevations

Issued updated revisions in clearly labelled sets (e.g., Rev001/Rev002), incorporating requested changes such as adjusted side depths and opening updates. Addressed file-access issues by ensuring PDFs were available for email sharing alongside the DWG package.

Draft Review and Final Handover

Provided the final proposed drawing pack in both PDF and DWG formats, ensuring the latest version was clearly identified. Confirmed the pack reflected the agreed assumptions and the most recent client feedback on siting and layout, supporting onward use for planning submission preparation.

Project Metrics

Rev001 and Rev002

Revision sets issued

250 mm

Wall thickness allowance

2078 mm

Door height referenced

2.4 m internal / 2.9 m external

Height parameters provided

Results & Impact

The client received updated proposed drawings reflecting the requested iterations—boundary-aware siting guidance, revised layout depths, and door/opening adjustments—issued as both PDF and DWG for straightforward onward use. Where access to downloads became an issue, we prioritised sending PDFs by email to keep the project moving and ensured the latest revision set was clearly identified.
