Residential Measured Building Survey & Existing Drawings – Willingale, Essex

Willingale, Essex
August–September 2025
7 August–3 September 2025 (approx. 4 weeks)

Residential Measured Building Survey & Existing Drawings – Willingale, Essex
Willingale, Essex

Results at a Glance

Completed measured survey of ground and first floor with access coordinated for the visit.

Produced existing drawings including front/rear elevations, an open side elevation, and a left-to-right section.

Included garage and perceived boundaries as requested for the drawing set.

Issued final CAD and PDF files with supporting site photographs, with tree positions recorded as accurately as possible from available information.

The Challenge

The client needed a measured survey of the ground and first floor, alongside existing drawings covering front and rear elevations, an open side elevation, and a section through the property. They also required the garage and perceived boundaries to be included, plus the proximity of two large trees shown on the drawings.

The main coordination challenge was confirming site access and scheduling the survey within a suitable arrival window. During drawing production, the team identified that additional on-site information was needed to capture the positions of the two large trees with full confidence. A revisit was requested to verify these features, but confirmation was not received at the time the draft pack was issued.

Our Solution

PlanCraftDaily scheduled the measured survey once access was confirmed and shared the surveyor’s arrival window and on-site contact details. Following the visit, the team progressed the project through internal quality checks and produced a draft drawing pack for review, aligned to the requested outputs and inclusions.

To support accurate site context, the team flagged the tree information early and proposed a brief revisit to update the tree positions. Where confirmation was pending, the drawings represented the trees as accurately as possible using the information available, and the team offered to revisit the site to update the tree locations.

Once the project was signed off, PlanCraftDaily issued the final drawing set and related files, including CAD, PDFs, and site photographs, providing a complete package ready to be used by the wider project team.

What We Delivered

Measured building survey of ground and first floor

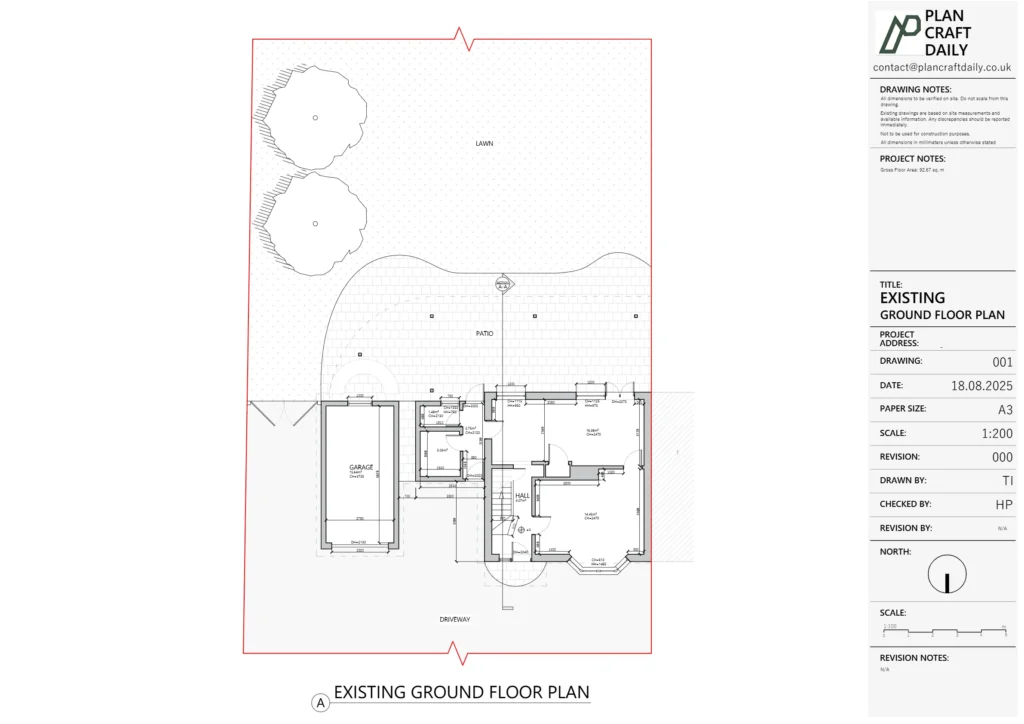

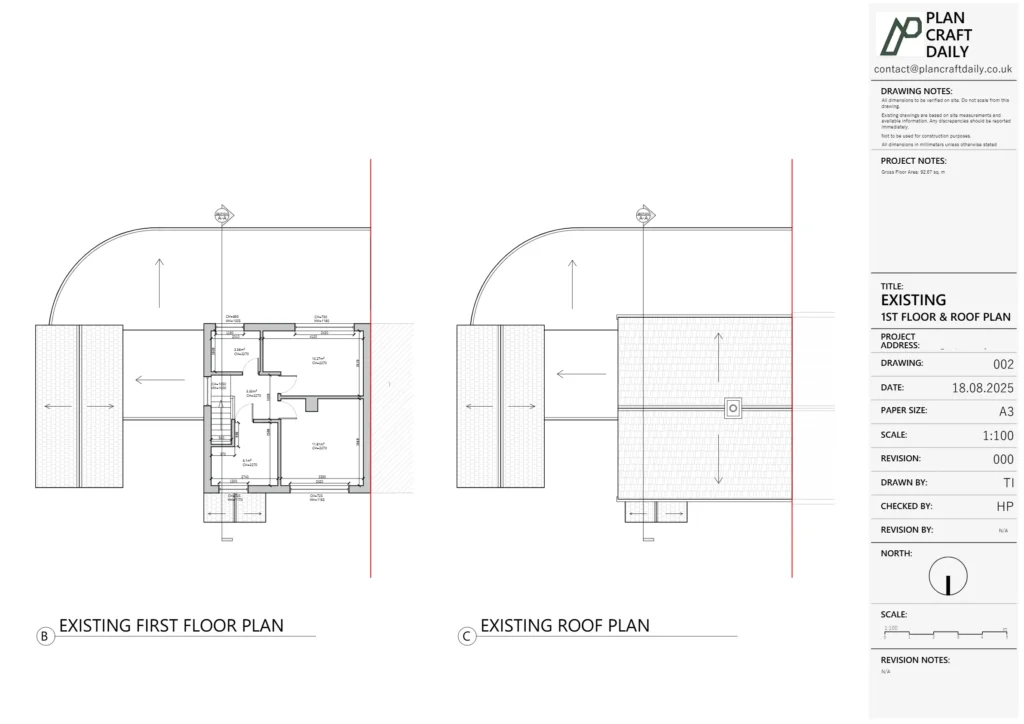

Existing floor plans (survey-based)

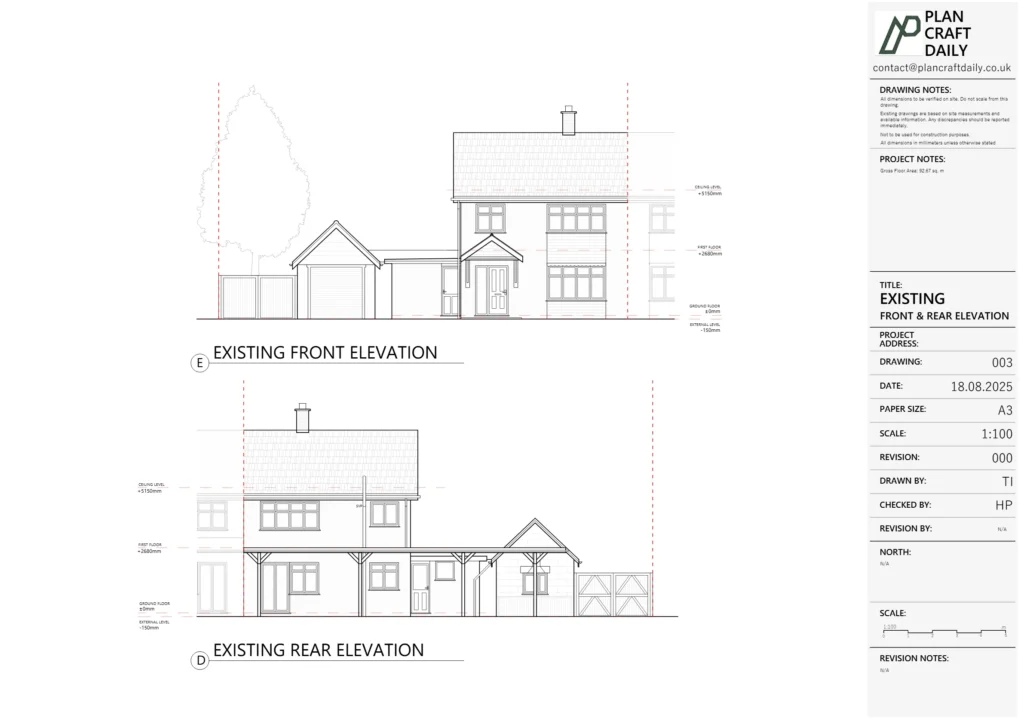

Front and rear elevations (existing)

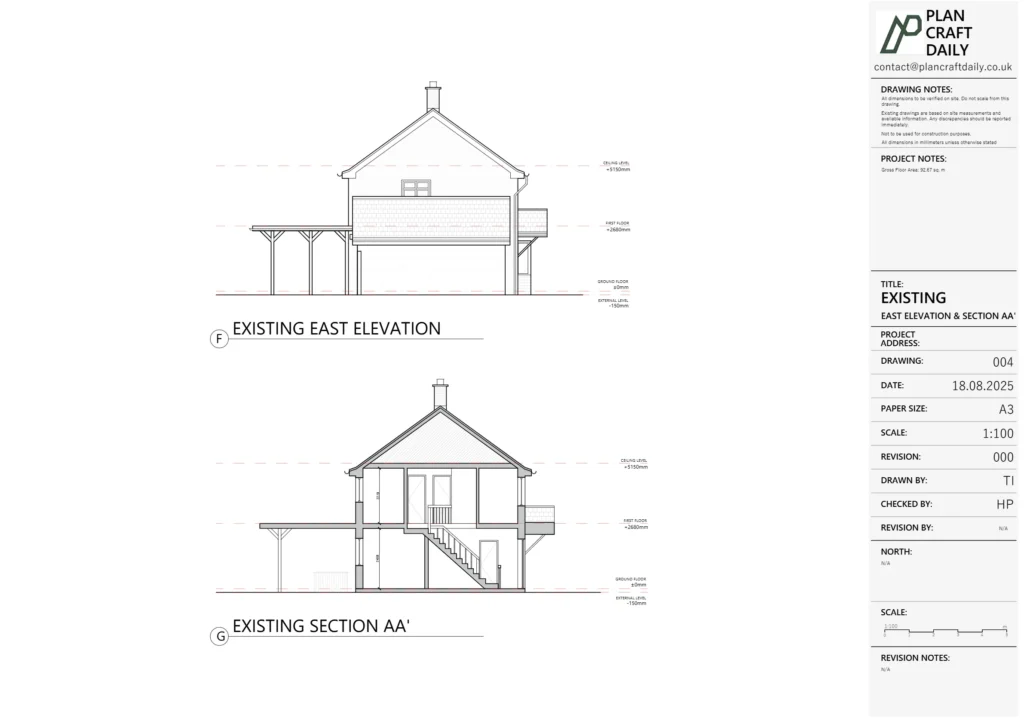

Open side elevation (existing)

Section through the property (left to right)

Garage and perceived boundaries included on drawings

Tree positions shown (two large trees; subject to on-site verification if required)

Outputs Delivered

DWG

PDF

The Process

Agreeing Scope, Fee and Friday Access

We confirmed the required survey scope and drawing outputs, including ground and first floor plans, elevations, and a section. The client also asked for the garage, perceived boundaries, and two large trees to be shown in proximity. Any site constraints and access expectations were clarified before scheduling.

On-Site Survey

Once access was confirmed, we scheduled the site visit and provided an arrival window and surveyor contact details. The client was advised to ensure access throughout the property and external areas needed for measurement and site context, supporting an efficient visit and complete data capture.

Cross-Checking Before Leaving

Our surveyor attended the property to capture the measurements required for accurate existing drawings. The survey focused on the internal layout (ground and first floor) and the information needed to produce elevations and the requested section, alongside site features relevant to the drawing pack.

Turning Survey into Plans and Elevations

We produced the CAD drawing set and moved the pack through internal quality assurance. During this stage, we identified that additional detail would improve confidence in the exact locations of two large trees. A brief revisit was proposed to update the tree positions where needed.

Draft Review and Final Handover

After review, we issued the final drawings and related files as a complete handover pack. This included CAD (DWG) and PDF drawings, plus site photographs. Where tree position confirmation was still pending, trees were shown as accurately as possible from the information available, with a revisit offered to refine.

Project Metrics

7 August 2025

Survey date scheduled

26 August 2025

Draft pack issued

3 September 2025

Final pack issued

2 large trees noted for positional accuracy

Site features recorded

Results & Impact

The client received a complete existing drawing pack based on a measured survey, including the specified elevations and section, plus the garage and perceived boundaries. Tree positions were recorded and highlighted for update where further on-site confirmation was needed, with a revisit offered to refine these elements. Final deliverables were issued in CAD and PDF formats with supporting site photographs.
