Englefield Green, Surrey
Residential
Surrey

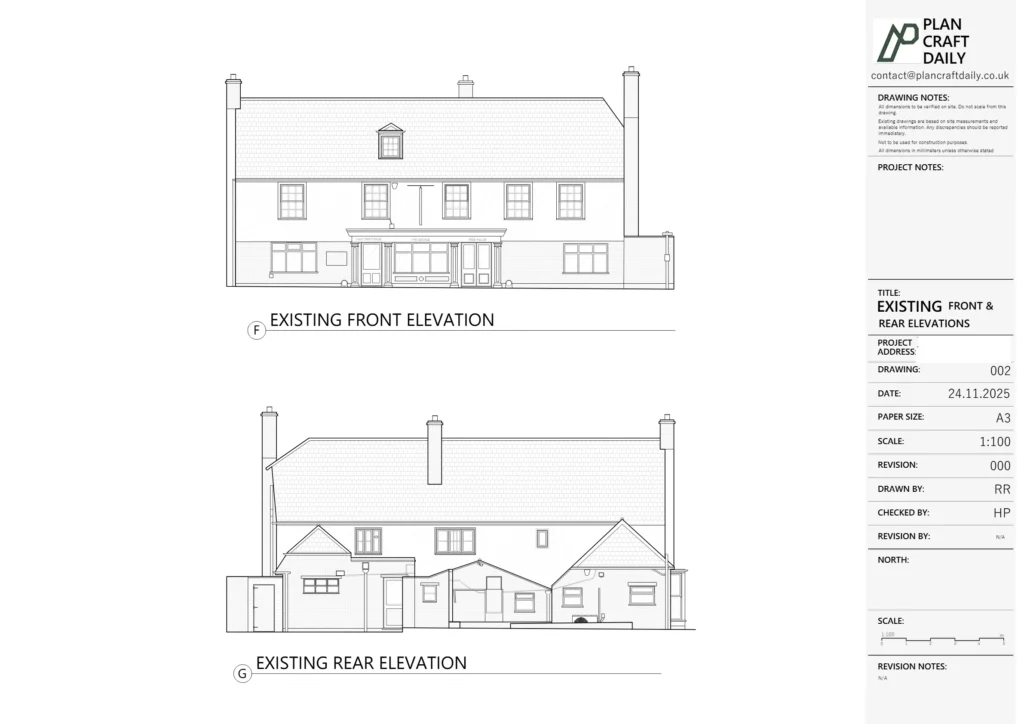

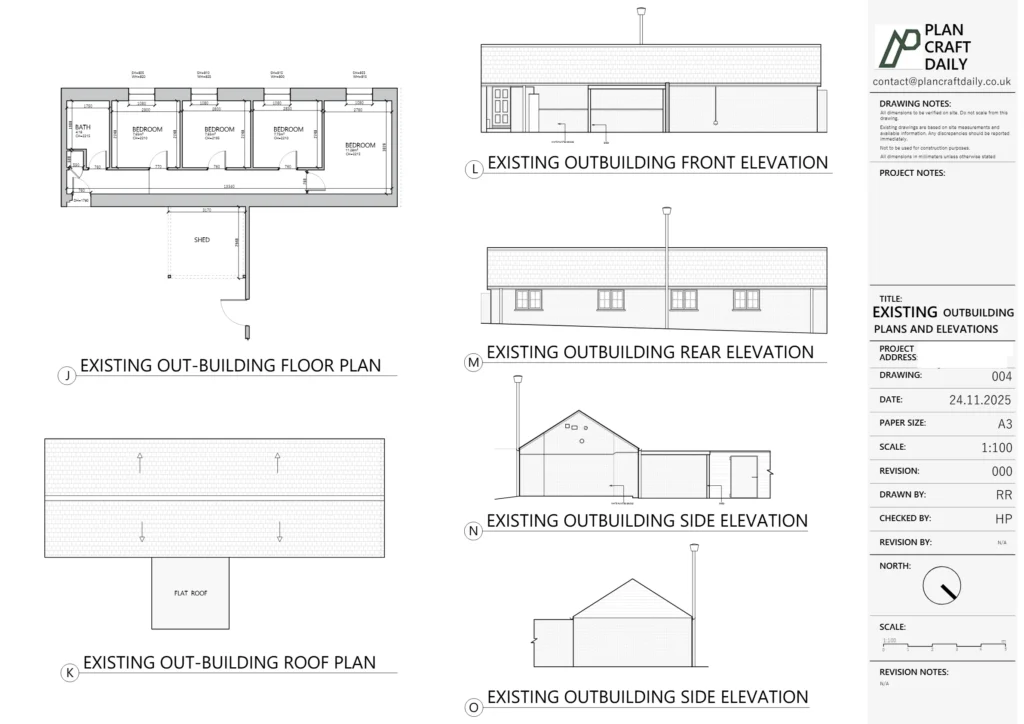

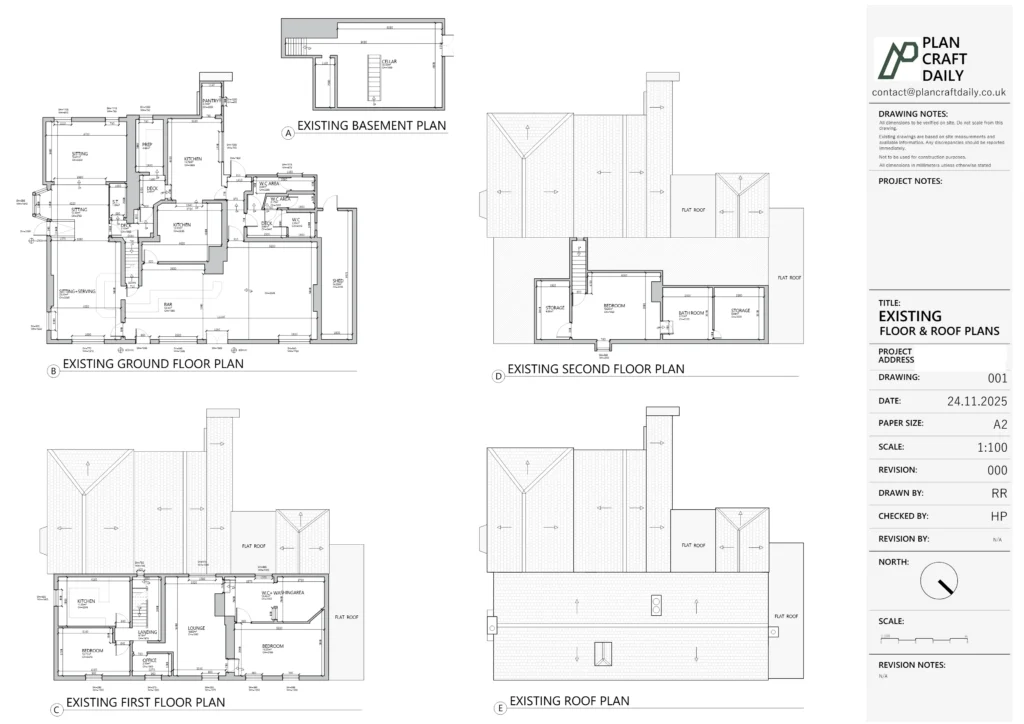

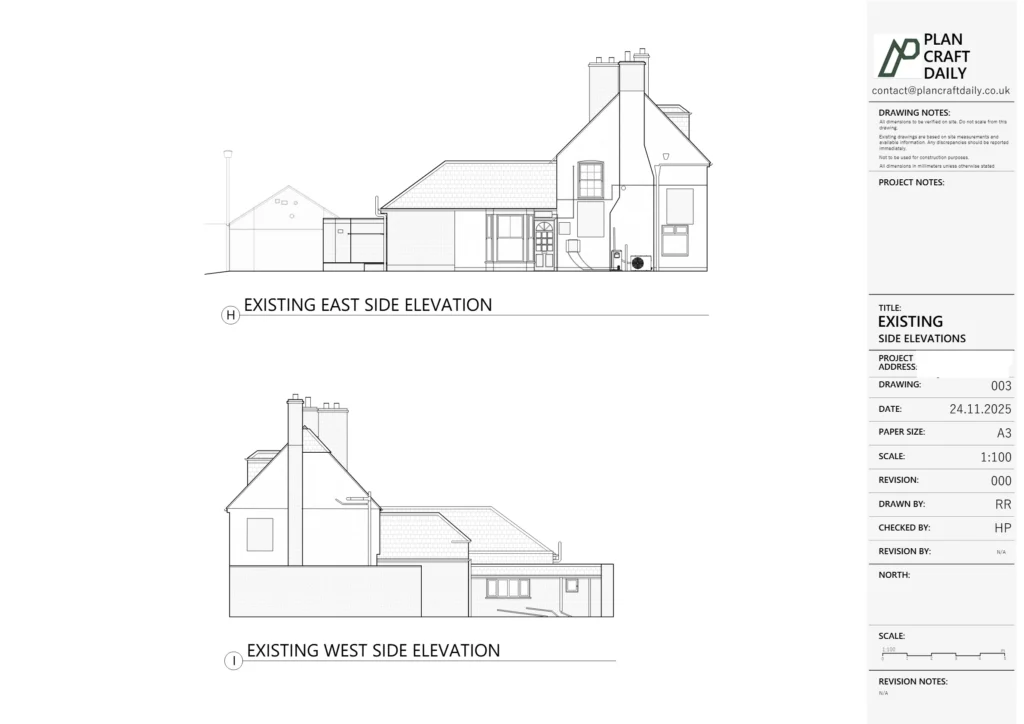

The client needed a complete set of existing drawings for a residential property in Englefield Green to support their next steps. The brief required a coordinated pack covering key measured outputs, including two floor plans, a roof plan, elevations, a section, and a site/location plan.
Scheduling was a practical constraint at the outset, with limited near-term availability and the client requesting clarity on the earliest workable slot. Once a date was agreed, the team also needed to keep communication clear while managing multiple projects in parallel and ensuring the client knew when to expect draft and final deliverables.
PlanCraftDaily confirmed a survey appointment with a defined arrival window and shared surveyor contact details to ensure smooth site access and coordination. Following the measured visit, we produced the requested existing drawing set based on survey data, maintaining consistency across plans, elevations, section and the site/location plan.
A draft drawing pack was then issued for review so the client could check everything before the final handover. After the review stage, we delivered the final drawing set along with the associated project files, including CAD and PDF formats, plus site photographs, so the information could be reused by the wider project team without rework.
Property Type
Residential
Location
Englefield Green, Surrey
Area
Surrey
Time Taken
Approx. 2 weeks
Completed
November 2025
The project concluded with a complete existing drawings pack issued in the required formats, covering floor plans, roof plan, elevations, section, and a site/location plan. The staged approach (survey → draft → final) helped ensure the outputs were suitable for onward design and coordination, with final files provided alongside site photographs for reference.
